ENGINE, 5.3L ECOTEC3 V8

SUMMIT WHITE

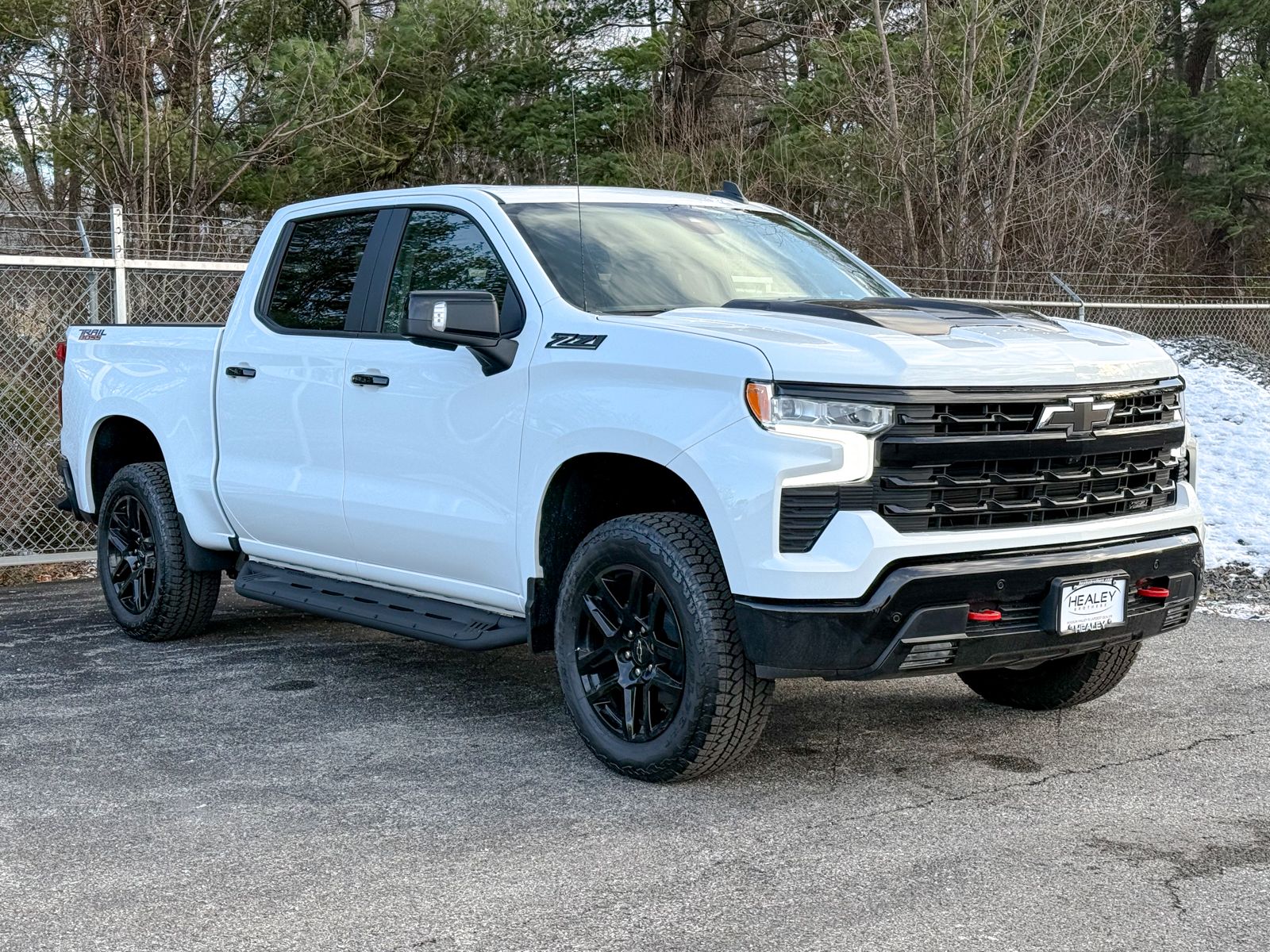

Vehicle Name - Chevrolet Silverado 1500

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Gross Axle Wt Rating - Front (lbs) - 3800

Gross Axle Wt Rating - Rear (lbs) - 3800

Curb Weight - Front (lbs) - 2845

Curb Weight - Rear (lbs) - 1981

Fuel Economy Est-Combined (MPG) - 16 (2025)

EPA Fuel Economy Est - City (MPG) - 15 (2025)

EPA Fuel Economy Est - Hwy (MPG) - 18 (2025)

Tons/yr of CO2 Emissions @ 15K mi/year - 9 (2025)

EPA Greenhouse Gas Score - 3 (2025)

Gross Vehicle Weight Rating Cap (lbs) - 7200

Gross Combined Wt Rating (lbs) - 15000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 9300

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 930

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 8600

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 2150

Maximum Trailering Capacity (lbs) - 9300

Engine Type - Gas V8

Fuel System - Direct Injection

Engine Order Code - L84

Displacement - 5.3L/325

SAE Net Horsepower @ RPM - 355 @ 5600

SAE Net Torque @ RPM - 383 @ 4100

Trans Order Code - MHS

Trans Type - 10

Trans Description Cont. - Automatic w/Paddle Shifters

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.99

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.28

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.64

Reverse Ratio (:1) - 4.87

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - - TBD -

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 170

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - - TBD -

Frame Type - Box Ladder

Suspension Type - Front - Lifted w/Independent coil-over-shock

Suspension Type - Rear - Lifted w/Solid Axle

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.23

Axle Ratio (:1) - Rear - 3.23

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - 1.30

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QFV

Rear Tire Order Code - QFV

Spare Tire Order Code - XCQ

Front Tire Size - LT265/60R20

Rear Tire Size - LT265/60R20

Spare Tire Size - 265/70R17SL

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 18 x 8.5

Rear Wheel Size (in) - 18 x 8.5

Spare Wheel Size (in) - 17 x 8

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 47.1

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 0.79

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.16

Second Hip Room (in) - 60.24

Wheelbase (in) - 147.5

Length, Overall (in) - 232.87

Width, Max w/o mirrors (in) - 81.24

Height, Overall (in) - 78.35

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 11.1

Ground Clearance, Rear (in) - 11.1

Cargo Box Length @ Floor (in) - 69.92

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 50.63

Cargo Box (Area) Height (in) - 22.4

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 62.9

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.7

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 4

Country of Origin - Mexico Chevrolet - Truck Active
